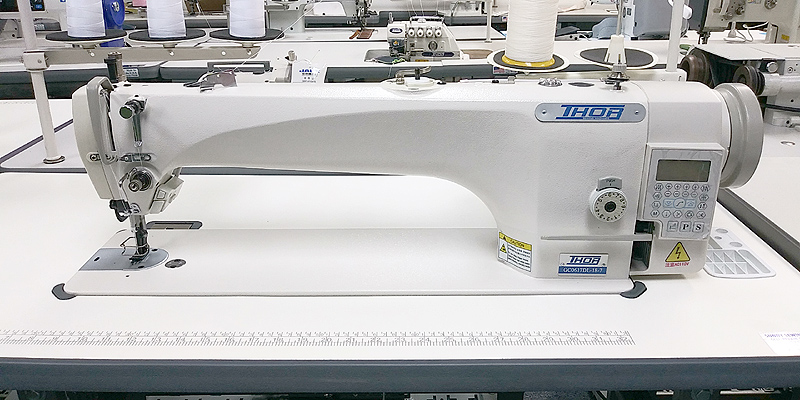

THOR GC-0617DL-18-7 Full Automatic 18 Inch Long Arm Walking Foot Sewing Machine

Name: THOR GC-0617DL-18-7 Full Automatic 18 Inch Long Arm Walking Foot Sewing Machine
SKU: 1102
Price: 3150.00 USD
Availability: InStock

QUICK OVERVIEW

Full Automatic 18″ Long Arm Walking Foot Sewing Machine with Reverse, Auto Thread Trimmer, Auto Back Tacks, Auto Foot Lift, Control Panel, Complete with Table, Stand and 110 Volt Direct Drive Motor

$3,150.00

Shipping Options

Please choose a shipping method.

Product price:	$3,150.00
Total options:
Order total:

Description
Reviews (0)

Description

THOR GC-0617DL-18-7 Full Automatic Single Needle Walking Foot Sewing Machine with 18″ Long Arm for Leather, Vinyl, Canvas and Synthetics.

AUTO THREAD TRIMMER
AUTO BACK TACKS
AUTO FOOT LIFT
INTEGRATED PROGRAMMER / CONTROL PANEL
ELECTRONIC DIRECT DRIVE MOTOR WITH NEEDLE POSITIONING
AUTO LUBRICATION with OIL PAN & OIL PUMP
COMPLETE & FULLY ASSEMBLED

THOR GC0617D-7 Automatic Long Arm Walking Foot Sewing Machine

	MACHINE BRAND:
	MACHINE MODEL:	THOR GC-0617DL-18-7
	MACHINE DESCRIPTION:	APPLICATIONS: For sewing medium to heavy weight materials such as upholstery fabrics, leather, vinyl, canvas, synthetics, laminated and coated products. This is a high speed compound feed (walking foot) lockstitch sewing machine. Large vertical rotary hook with large bobbin capacity, rectangular feeding motion prevent the stitch gathering, the alternative vertical movement mechanism prevents irregular and inconsistent stitches. Equipped with the thread trimmer, auto foot lift and reverse. Suitable for sewing medium and heavy weight materials, such as automotive and marine upholstery, soft and hard leather goods, denim, handbags, sporting goods, webbing, etc. FEATURES: The THOR GC-0617DL-18-7 is an 18″ long arm high speed automatic compound feed (walking foot) sewing machine with a very wide range of functions. Sew materials from denims, to canvas, leather, webbing, vinyl, synthetics and foam. The machine features an integrated control panel that easily lets you set the beginning and ending back tacks, set needle positioning up or down, control the speed, and program sections of sewing by number of stitches. This machine also has an integrated DIRECT DRIVE motor making it very quiet, vibration-free, and energy efficient. It features a big hook and bobbin (size M) and will handle thread sizes from TEX 40 to TEX 138. Needle system is 135×17 and will take needle sizes from 16 to 23. Lubrication is fully automatic with an oil pan and pump on the bottom of the machine. This model features FULL AUTOMATION and includes the following features: Automatic Thread Trimmer Automatic Back Tacks Automatic Foot Lift Electronic Motor with Needle-Up/Needle-Down Positioner Body-Mounted Programmer / Control Panel Speed Adjustment
	TECHNICAL SPECS:	APPLICATION: For Medium to Heavy Materials MAX SEWING SPEED: 2,000 SPM MAX STITCH LENGTH: 8mm Forward/Reverse NEEDLE BAR STROKE: 37mm FOOT LIFT: 16mm by Foot, 8mm by Hand HOOK: Large Hook / BIG Bobbin NEEDLE: 135×17 THREAD: TEX 40 to TEX 138 FEED ACTION: Complete Rectangular Feed STITCH LENGTH CHANGE METHOD: By Dial SAFETY MECHANISM: Standard LUBRICATION: Full Automatic Lubrication (Automatic Hook Lubrication)
	MACHINE SETUP:	This machine ships complete and fully assembled – ready to sew upon arrival. It includes: Machine Head All Automatic Functions Table Top Heavy Duty Stand Needle Positioning Direct Drive Motor LED Light Manuals Extra needles, bobbins, and tools.
	MOTOR & VOLTAGE:	This machine is equiped with a DIRECT DRIVE SERVO motor operating on standard 110 Volts power.
	WARRANTY:	1 Year Warranty
	SALE PRICE:	$3,150.00
	SHIPPING COST:	Commercial / Business Address = $240.00 Home / Residential Address = $295.00
	DELIVERY TIME:	In stock. 4 to 5 days delivery window.
	MACHINE BROCHURE:	N/A
	PARTS MANUAL:	Printed copy comes with the machine
