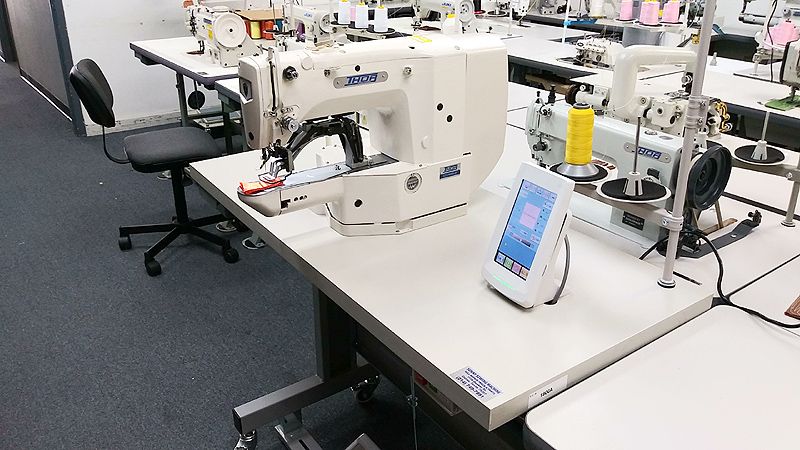

THOR GT-1900B-IP Electronic Bar Tacker Machine with Large Hook and Bobbin

QUICK OVERVIEW

NEW Electronic Bar Tacker with 100 Patterns in Memory, 40 mm x 30 mm Sewing Field, On-Board Full Color LCD Touch-Screen Programmer, Bar Tacks, Box-X, Custom Shapes, Big Hook and Bobbin.

$3,795.00

Shipping Options

Please choose a shipping method.

Product price: $3,795.00
Total options:
Order total:

Description

THOR GT-1900B-IP Electronic Bar Tacker for Heavy Weight Materials, 40mm x 30mm Max Sewing Field, 100 Pre-Programmed Tacking Patterns in Memory, BIG Hook and High Capacity Bobbin

THOR GT-1900B-IP Electronic Tacker with BIG Hook and Bobbin

Machine Brand MACHINE BRAND: THOR Sewing Machines
Sewing Machine Model MACHINE MODEL:

THOR GT-1900B-IP

Sewing Machine Description MACHINE DESCRIPTION: The new THOR GT-1900B-IP is an electronic bar tacker with a max sewing field of 40mm x 30mm.  This machine features an on-board LCD touch screen control panel with programming functions and pattern editing options.
The machine comes with 100 pre-programmed patterns including:
  • horizontal tacks in varying lengths, widths and stitch counts
  • vertical tacks in varying lengths, widths and stitch counts
  • eyelet patterns
  • half moons
  • see complete pattern list below

This machine features a large hook and bobbin – designed for sewing light, medium AND heavy materials.  Several layers of webbing can be sewn with ease.

This machine is ideal for tacking webbig (dog collars, bag starps, military vests, etc), jeans, bag handles, and many other uses.

The machine is equipped with the standard factory-set tacking clamp measuring 7/8″.  Custom clamps and programs are available to sew box-x and other patterns.  Contact Dali at 214-749-7991 should you need custom clamping and programming for this machine.

This THOR tacker ships complete with a new table top, stand and electronic control box. Electronics and control panel are designed by DaHao which has been a very solid, trouble-free platform for many years and is used on multiple brands of pattern sewing machines and tackers.

The standard voltage is 220 Single phase, but the machine is equiped with a free 110 Volt transformer mounted under the table – runs on standard 110 Volt household electrical power.

Techical SpecificationsTECHNICAL SPECS:

Application Standard Eyelet Buttonhole Bartacking Machine
Max. sewing speed 3,200 Stitches per Minute
Sewing Area 30mm x 40mm
Needle Bar Stroke 41.2mm
Lift of the Work Clamp Foot 14mm (17mm when the reverse-rotation needle-up function)
Needle (at the time of delivery) DPx5 (#14)
Hook Standard Shuttle Hook
Lubrication Hook: Minute-Quantity Lubrication
Lubricating Oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Weight of the machine head 47.3kg – See more at: http://www.allbrands.com/products/2522-juki-lk1900-bartacking-sewing-machine-thread-trimm#sthash.rK29Raj8.dpuf
  • Model Name : GT-1900B-IP
  • Application : Medium to Heavy-Weight
  • Max. sewing speed : 3,000sti/min
  • Sewing area : 40mm (X-Axis)×30mm (Y-Axis)
  • Max. stitch length : 0.1mm~10mm (0.1step)
  • Lift of the work clamp foot : Standard 13mm (17mm max)
  • Needle : DP×17 (#21)
  • Number of standard patterns : 100 patterns
  • Number of data that can be input: 200 patterns(for up to 140 patterns, sewing data can be added)
Application Standard Eyelet Buttonhole Bartacking Machine
Max. sewing speed 3,200 Stitches per Minute
Sewing Area 30mm x 40mm
Needle Bar Stroke 41.2mm
Lift of the Work Clamp Foot 14mm (17mm when the reverse-rotation needle-up function)
Needle (at the time of delivery) DPx5 (#14)
Hook Standard Shuttle Hook
Lubrication Hook: Minute-Quantity Lubrication
Lubricating Oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Weight of the machine head 47.3kg – See more at: http://www.allbrands.com/products/2522-juki-lk1900-bartacking-sewing-machine-thread-trimm#sthash.rK29Raj8.dpuf
Application Standard Eyelet Buttonhole Bartacking Machine
Max. sewing speed 3,200 Stitches per Minute
Sewing Area 30mm x 40mm
Needle Bar Stroke 41.2mm
Lift of the Work Clamp Foot 14mm (17mm when the reverse-rotation needle-up function)
Needle (at the time of delivery) DPx5 (#14)
Hook Standard Shuttle Hook
Lubrication Hook: Minute-Quantity Lubrication
Lubricating Oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Weight of the machine head 47.3kg – See more at: http://www.allbrands.com/products/2522-juki-lk1900-bartacking-sewing-machine-thread-trimm#sthash.rK29Raj8.dpuf

Sewing Machine SetupMACHINE SETUP:

This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Control Panel
  • Standard Horizontal Tacking Clamp with 1″ clearance  (others can be ordered)
  • Table Top
  • Heavy Duty Stand
  • Integrated DIRECT DRIVE SERVO Motor
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.



Sewing Machine VoltageMOTOR & VOLTAGE:Integrated Motors – 110 VoltsSewing Machine WarrantyWARRANTY:1 Year WarrantySewing Machine Sale PriceSALE PRICE:$3,795.00Sewing Machine Shipping CostSHIPPING COST:

Commercial / Business Address = $295.00

Home / Residential Address = $395.00

Delivery TimeDELIVERY TIME:4 to 6 Daysicon pdfMACHINE BROCHURE:N/ASewing Machine Parts ManualPARTS MANUAL:Printed copy comes with the machine
