THOR GC-8810 Top & Bottom Feed Roller Foot Sewing Machine for Leather

QUICK OVERVIEW

THOR GC-8810 Post Bed Sewing Machine with Top & Bottom Feed Roller Foot. Ideal for sewing shoe uppers and various leather products.

$1,995.00

Shipping Options

Please choose a shipping method.

Product price: $1,995.00
Total options:
Order total:

Description

THOR GC-8810 Single Needle Post Bed Sewing Machine with Top and Bottom Feeding Roller Foot.

THOR GC-8810 Top & Bottom Feed Roller Foot Post Bed Sewing Machine

Machine Brand MACHINE BRAND:

THOR Sewing Machines

Sewing Machine Model MACHINE MODEL:

THOR GC-8810

Sewing Machine Description MACHINE DESCRIPTION: High Speed,  Single Needle, Post Bed, Lockstitch Machine, Drop Feed, Needle Feed

With: Vertical Axis Rotary Hooks, Intermittent Wheel Feed, Intermittent Positively Driven Roller Presser, Simplified Semi-automatic Lubrication, Anti-Friction Ball and Roller Bearings, Built-In Bobbin Winder



Applications

  • Lower and driven presser wheel feeding action combined with needle feed provide powerful transport for slippery materials of any type as well as leather, vinyl and polyethylene plastics, oil cloth, just any material difficult to feed, coated and laminated fabrics.
  • Suitable for stitching hollow, tubular and curved articles and climbing over thick sections always assuring constant stitch length.

Features

  • As many as 29 anti-friction ball and needle roller bearings (depending on model) for easy maintenance.
  • Continuous lubrication from copious reservoir.
  • Vertical axis rotating hook.
  • Triple feeding mechanism assures even feeding of difficult-to-sew materials.



Techical Specifications TECHNICAL SPECS:
Standard or Full Function Standard Functions
Needle 135×7 (cat.1955)
Workspace Standard Workspace
Hook Size
Hook 38032
Feeding Mechanism Needle Feed
Post Height 7″ (178mm)
Clearence Under Presser Foot 9/32″ (7mm)
Stitch Type 301
Stitch Length 5 (5mm)
Bed Size 7″x20 3/8″ (177x518mm)
Work Surface 2″x2 13/32″ (52x61mm)
Number of Needles 1 (Single)
Needle Bar Stroke 1 1/2″ (38mm)
Speed, Max (S.P.M.) 3500
Sewing Machine Setup MACHINE SETUP:

This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • LED Light
  • Thread Stand
  • Manuals
  • Extra needles, bobbins, and tools.



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equiped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $1,995.00 – Complete and FULLY ASSEMBLED
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $240.00

Home / Residential Address = $295.00

Delivery Time DELIVERY TIME: 4 to 6 Days
icon pdf MACHINE BROCHURE: N/A
Sewing Machine Parts Manual PARTS MANUAL: N/A

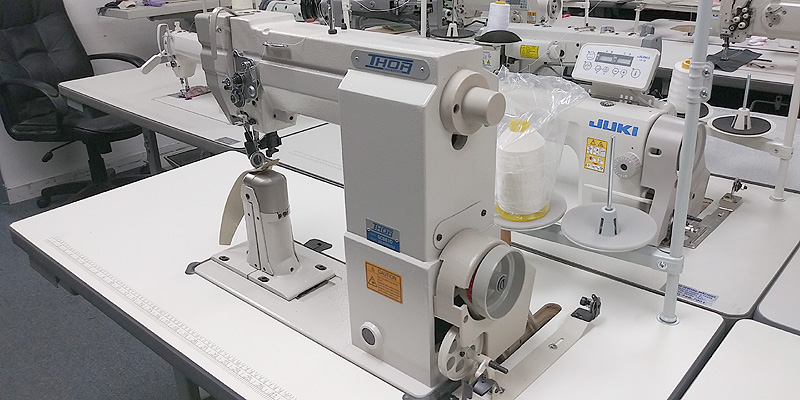

THOR GC-8810 Roller Foot Post Bed Sewing Machine

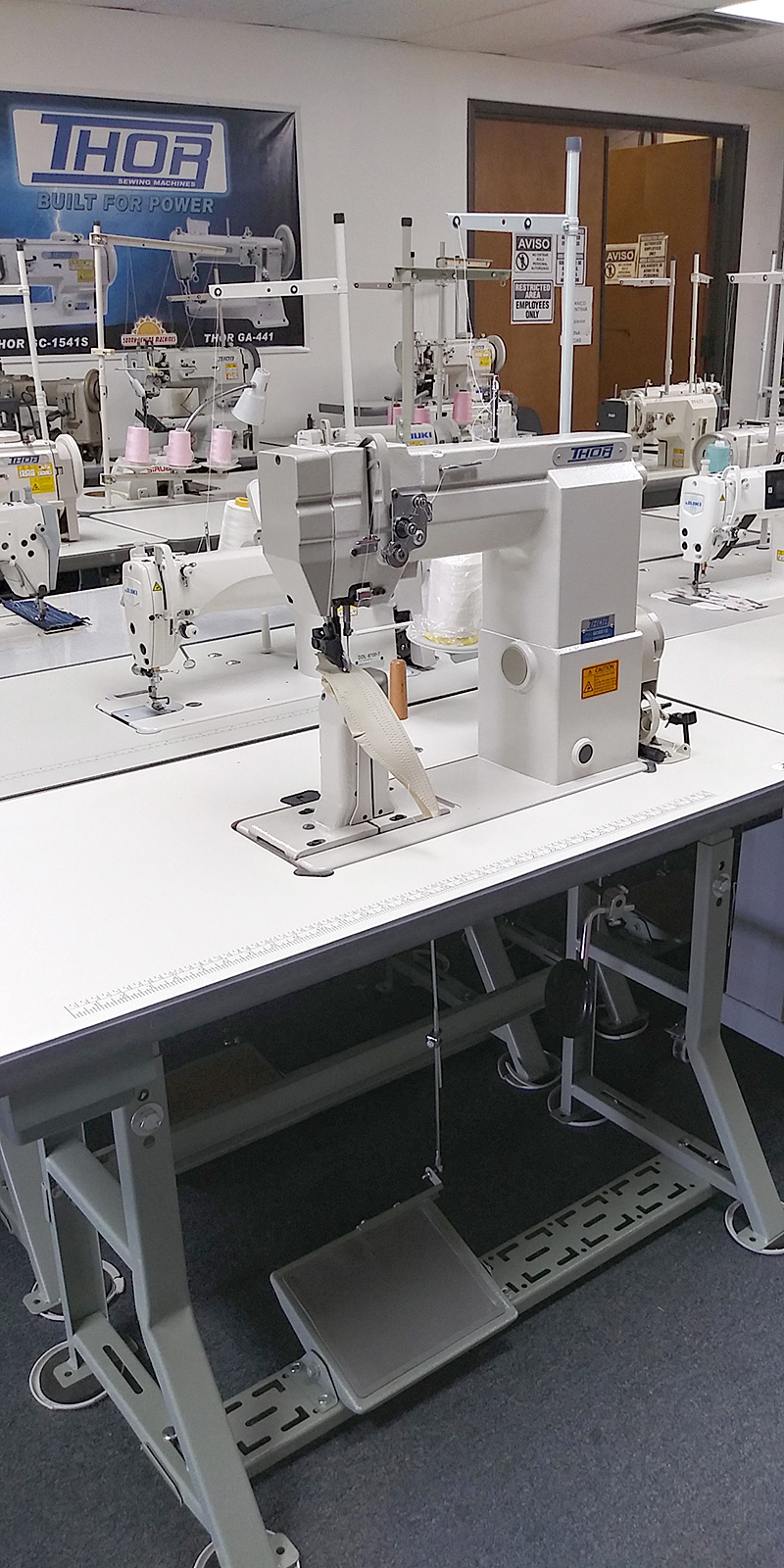

THOR GC-8810 Roller Foot Post Bed Sewing Machine

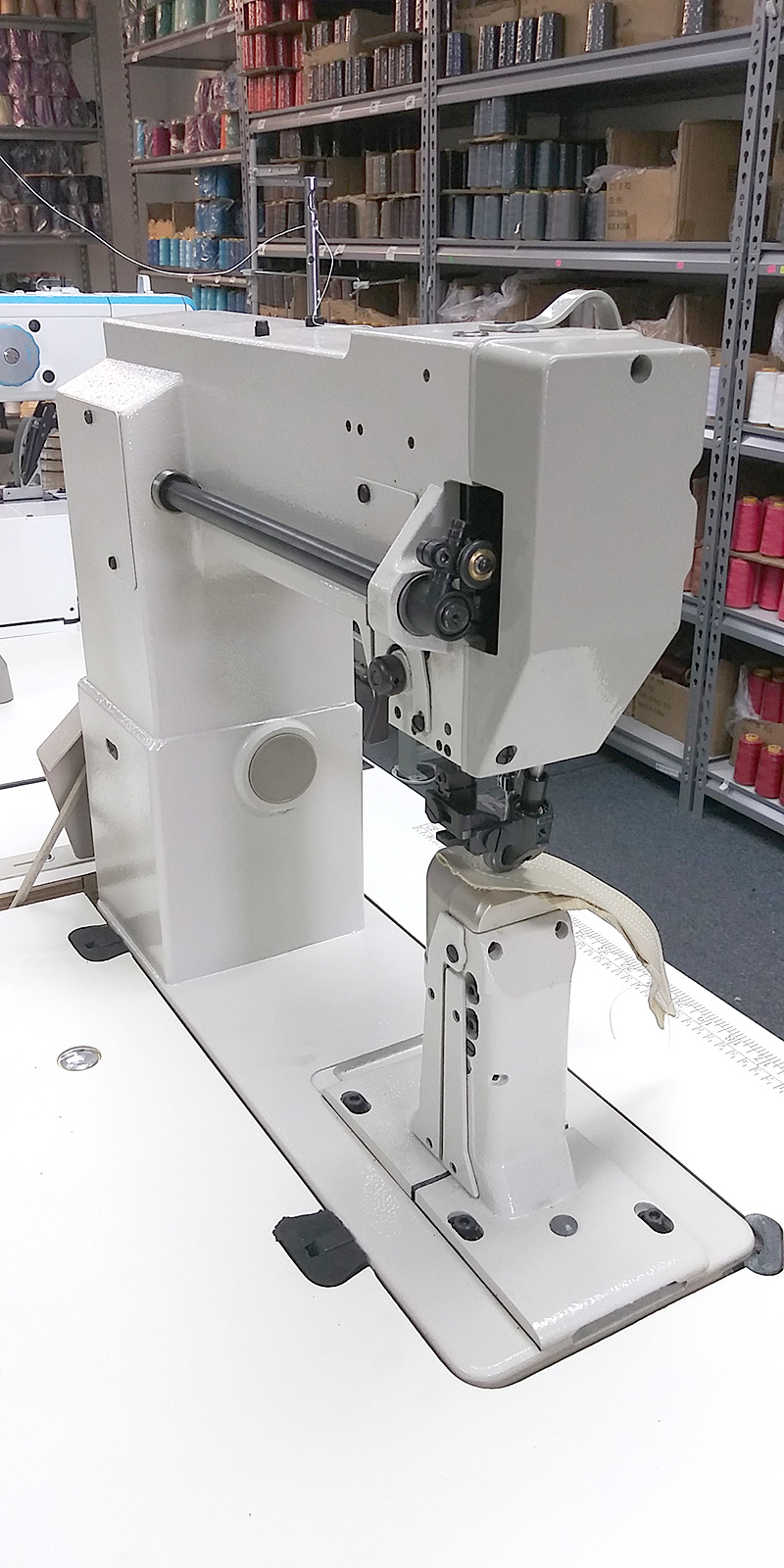

THOR GC-8810 Roller Foot Post Bed Sewing Machine

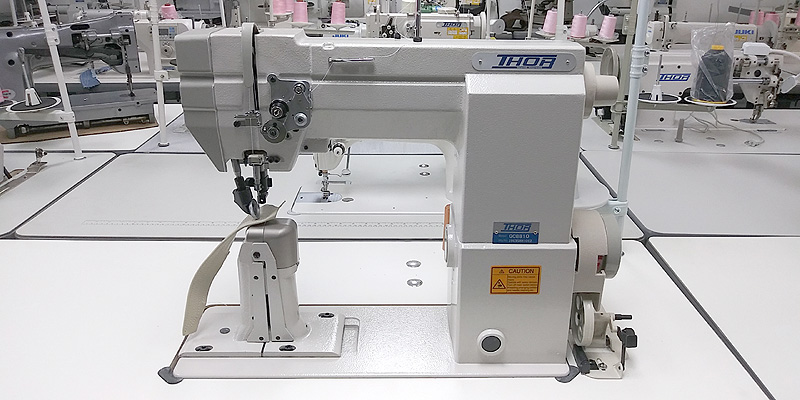

THOR GC-8810 Roller Foot Post Bed Sewing Machine
