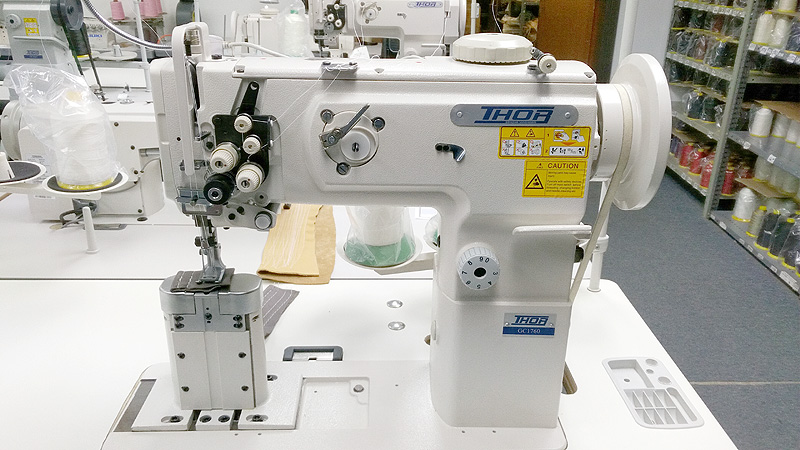

THOR GC-1765 Double Needle SPLIT BAR Post Bed Walking Foot Sewing Machine

Description

https://mealsheelsandcocktails.com/tag/aperol/ THOR GC-1765 Double Needle SPLIT NEEDLE BAR POST BED Walking Foot Sewing Machine for Leather, Upholstery, Canvas and Webbing with 3/8″ Needle Gauge

https://warimag.net/tag/tunisie/ THOR GC-1760 Double Needle Post Bed Walking Foot Sewing Machine

https://www.agusto.com/other-ratings/ MACHINE BRAND:

Buy Carisoprodol Online MACHINE MODEL:

THOR GC-1765

https://www.theartsmusicstore.com/music-lessons/ MACHINE DESCRIPTION:

APPLICATIONS:

For sewing medium to heavy weight materials such as fabrics, leather, vinyl, synthetics, laminated and coated products.

Suitable for sewing such products as aviation seating and interiors, automotive head rests, furniture upholstery, automotive interiors, webbing straps, and similar items.

FEATURES:

This double needle post bed sewing machine has a dual tension mechanism, with which the machine can support high tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight materials.

The high 16mm presser foot lift enables easy material handling for heavy sewing.

The 1760s’ maximum stitch length of 2 ½ stitches per inch allows a broader range of uses, such as awnings and sacks.

The stitch length is easily adjusted by the stitch dial.

The 1760 has a unique feature which allows the user to simply dial in the walk height of the Walking Foot. This prevents the Walking Foot from snagging on thicker material.

This machine has AIR FOOT LIFT installed and you will need 50 to 60 PSI compressed air flow.

The post bed has a height of 6″ and the clearance from bed to machine neck is 10.5″

TECHNICAL SPECS:

APPLICATION: For Heavy Materials
MAX SEWING SPEED: 2,500 SPM
NEEDLE GAUGE: https://massagegunreview.com/good-massage/ 3/8″ Installed – 1/4″ Gauge Also Available
MAX STITCH LENGTH: 9mm Forward/Reverse (2 1/2 Stitches Per Inch)
NEEDLE BAR STROKE: 36mm
FOOT LIFT: 16mm by Knee, 9mm by Hand
WALKING FOOT HEIGHT ADJUSTMENT DIAL: Standard
THREAD TAKE UP: Slide Type
HOOK: Horizontal Axis DOUBLE Capacity Hook with U Style Bobbins
NEEDLE: 135×17
THREAD: TEX 70 to TEX 210
FEED ACTION: Complete Rectangular Feed
NEEDLE THREAD TENSION: DUAL Tension Method
STITCH LENGTH CHANGE METHOD: By Dial
SAFETY MECHANISM: Standard
LUBRICATION: Centralized Oil Wick Lubrication (Automatic Hook Lubrication)
