Description

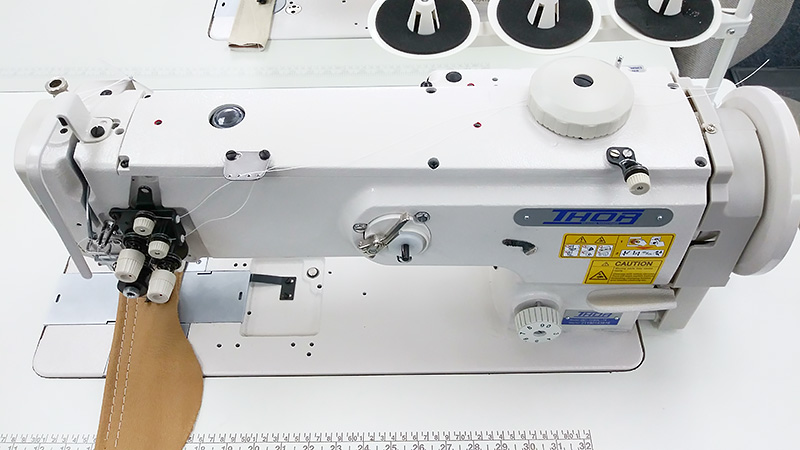

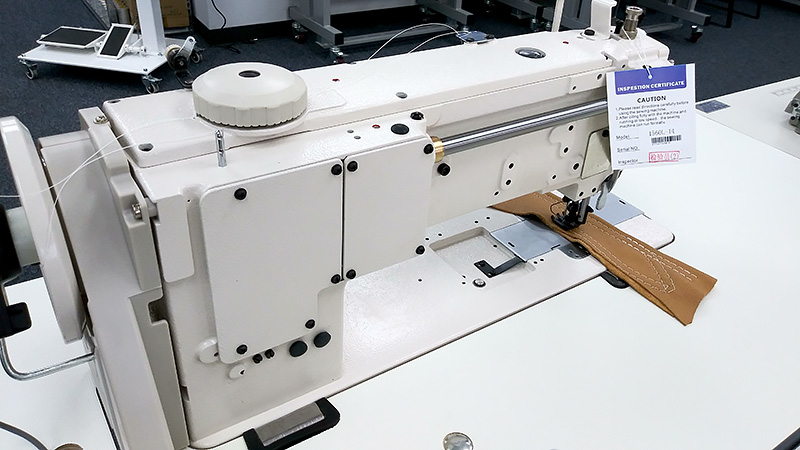

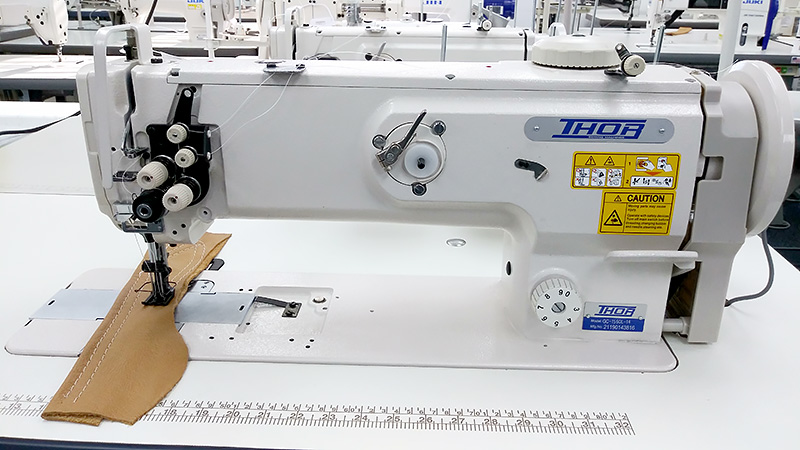

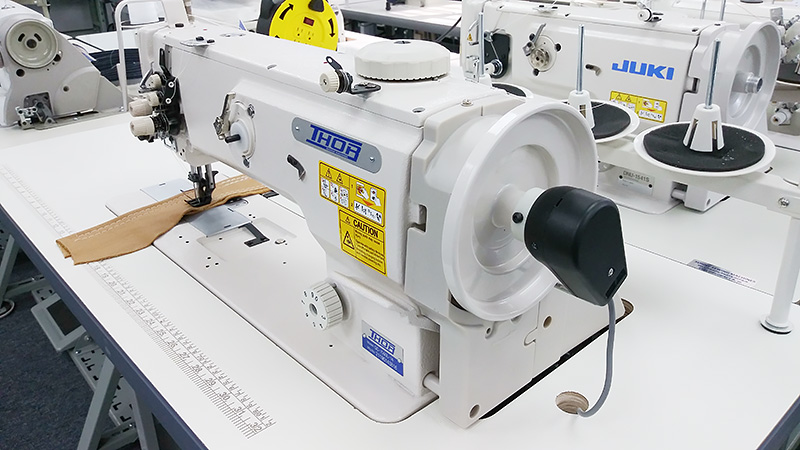

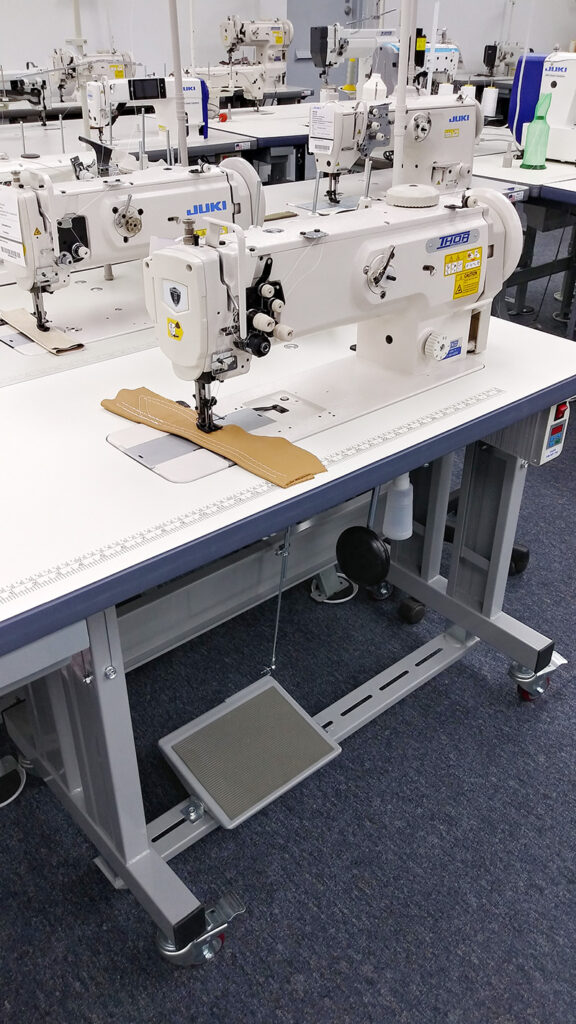

THOR GC-1560L-14 Double Needle 14″ Long Arm Walking Foot Sewing Machine for Leather, Upholstery and Heavy Weight Materials

	MACHINE BRAND:

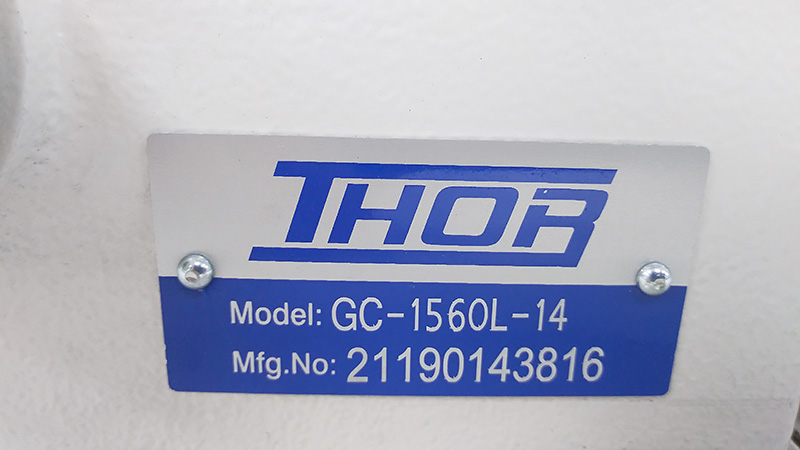

	MACHINE MODEL:	THOR GC-1560L-14

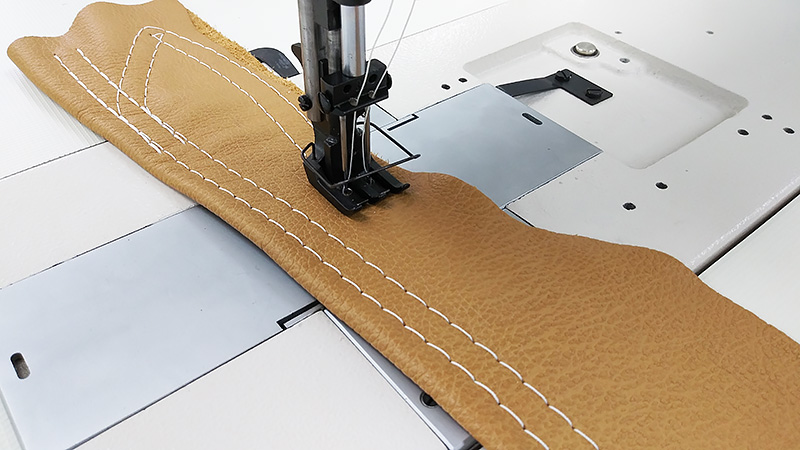

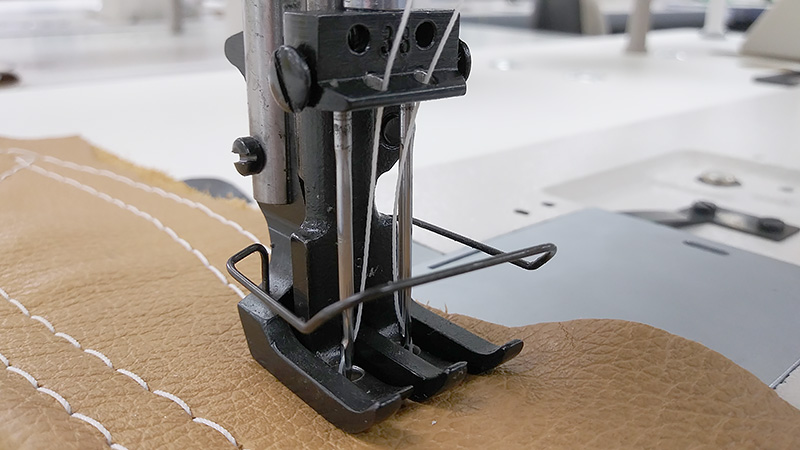

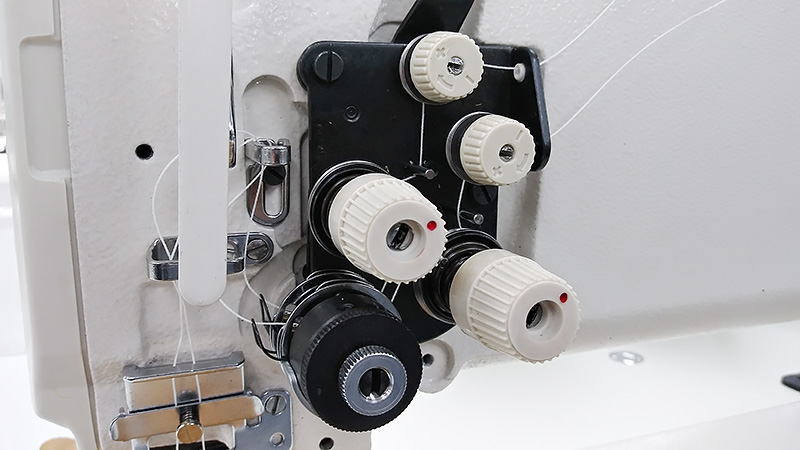

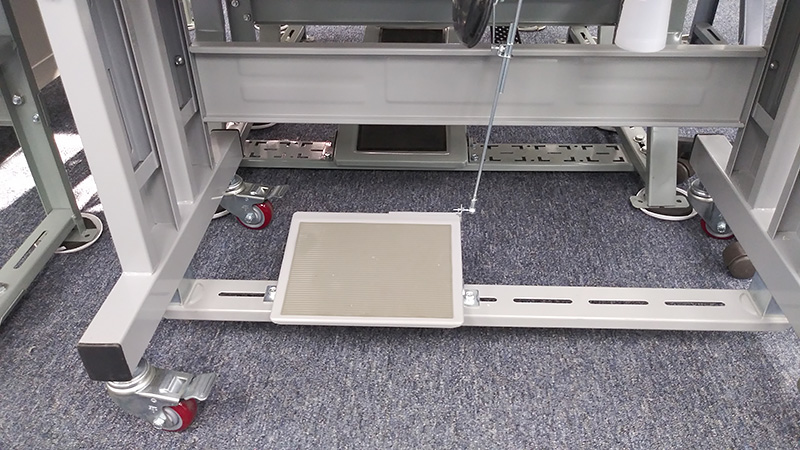

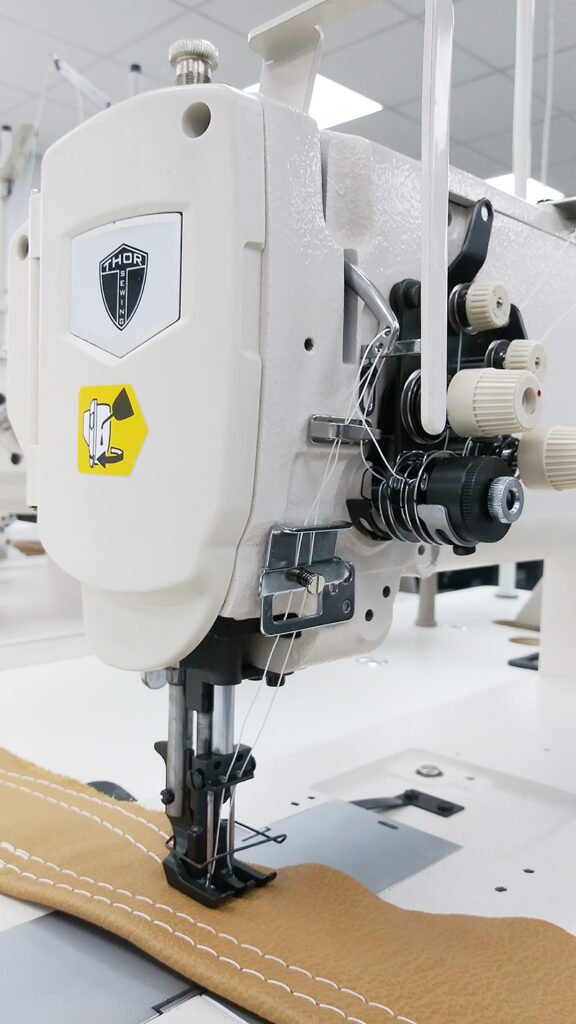

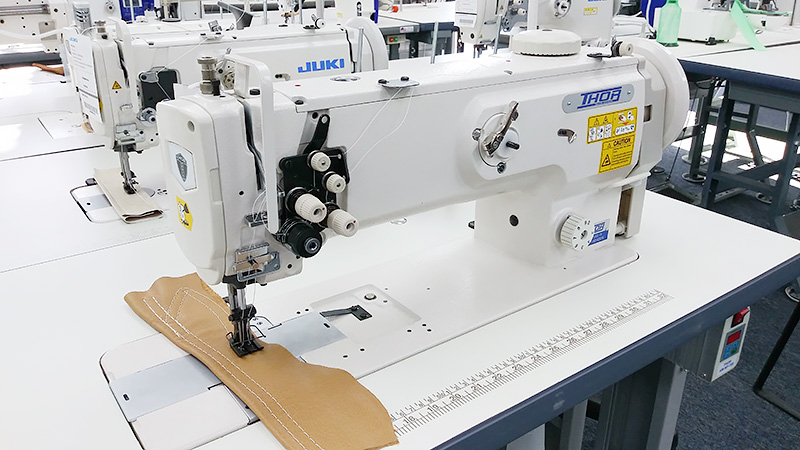

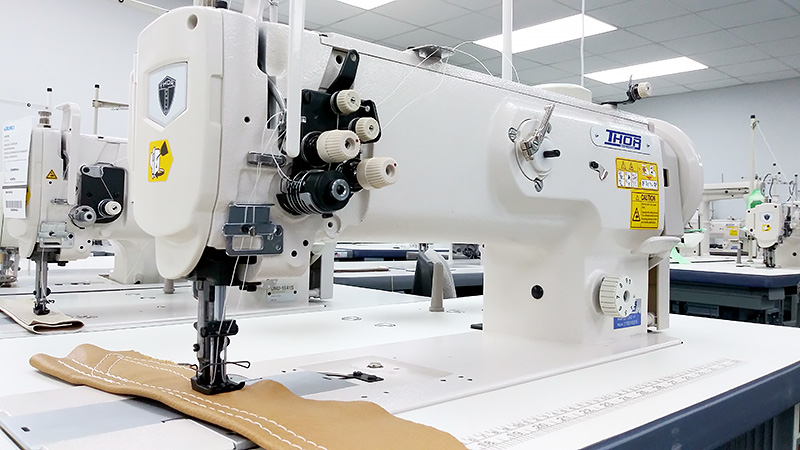

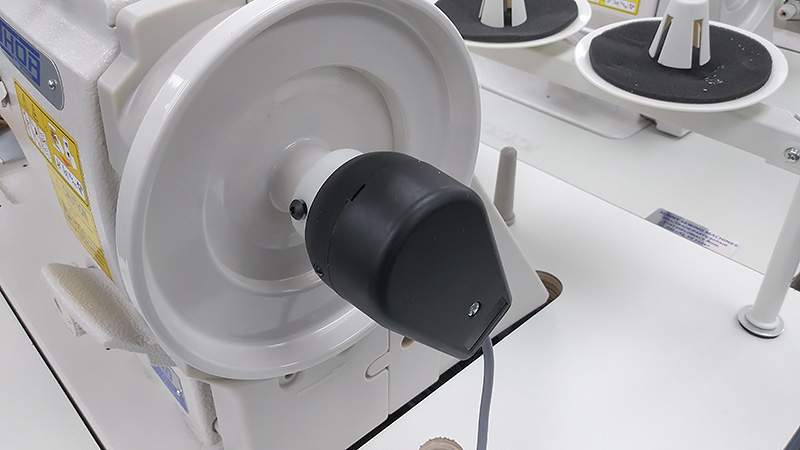

	MACHINE DESCRIPTION:	14″ Long Arm Double Needle Walking Foot Machine “U” Size Bobbins Caster Stand with Locking Wheels 750 Watt Needle Positioning SERVO Motor APPLICATIONS: For sewing medium to heavy weight materials such as fabrics, leather, vinyl, synthetics, laminated and coated products. Suitable for sewing such products as cargo handling belts, containers, automobile upholstery, covers, sails, tents, camping trailer covers, awnings, hand bags, etc. FEATURES: This double needle machine has a dual tension mechanism, with which the machine can support high tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight materials. The high 16mm presser foot lift enables easy material handling for heavy sewing. The 1560L-14s’ maximum stitch length of 2 ½ stitches per inch allows a broader range of uses, such as awnings and sacks. The stitch length is easily adjusted by the stitch dial. The 1560L-14 has a unique feature which allows the user to simply dial in the walk height of the Walking Foot. This prevents the Walking Foot from snagging on thicker material.

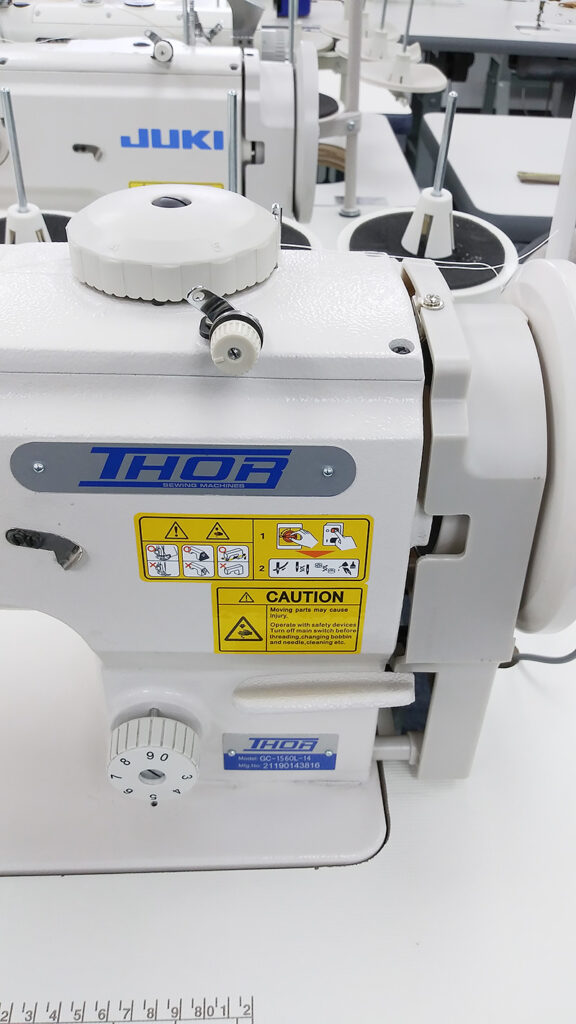

	TECHNICAL SPECS:	APPLICATION: For Heavy Materials ARM LENGTH: 14″ MAX SEWING SPEED: 2,500 SPM NEEDLE GAUGE: 1/4″ or 3/8″ Installed – Other Gauges Available MAX STITCH LENGTH: 9mm Forward/Reverse (2 1/2 Stitches Per Inch) NEEDLE BAR STROKE: 36mm FOOT LIFT: 16mm by Knee, 9mm by Hand WALKING FOOT HEIGHT ADJUSTMENT DIAL: Standard THREAD TAKE UP: Slide Type HOOK: Horizontal Axis DOUBLE Capacity Hook with U Style Bobbins NEEDLE: 135×17 THREAD: TEX 60 to TEX 210 FEED ACTION: Complete Rectangular Feed NEEDLE THREAD TENSION: DUAL Tension Method STITCH LENGTH CHANGE METHOD: By Dial SAFETY MECHANISM: Standard LUBRICATION: Centralized Oil Wick Lubrication (Automatic Hook Lubrication)
	MACHINE SETUP:	This machine ships complete and fully assembled – ready to sew upon arrival. It includes: Machine Head Table Top Stand Thread Stand 110 Volt Power SERVO Motor Tools & Manuals

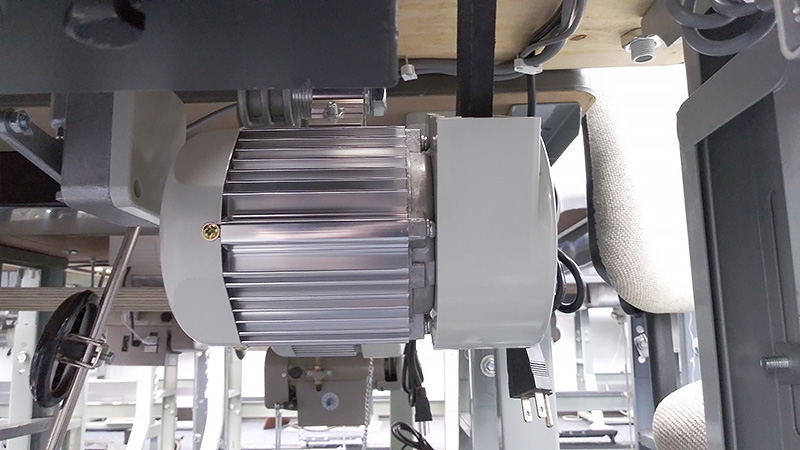

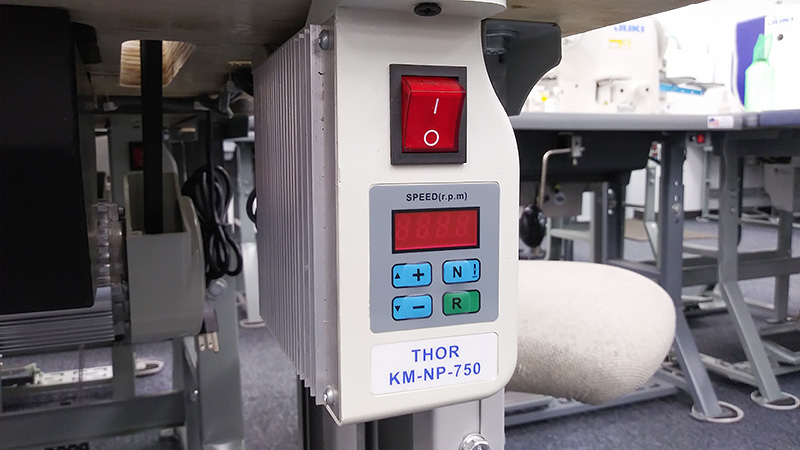

	MOTOR & VOLTAGE:	This machine is equipped with a SERVO motor operating on standard 110 Volts power.
	WARRANTY:	1 Year Warranty
	SALE PRICE:	$3,295.00
	SHIPPING COST:	Commercial / Business Address = $295.00 Home / Residential Address = $395.00
	DELIVERY TIME:	In stock now and ready to ship. 7 to 10 days delivery window to most US Addresses
	MACHINE BROCHURE:	N/A
	PARTS & INSTRUCTION MANUAL:	Ship with the machine

Product price:	$3,295.00
