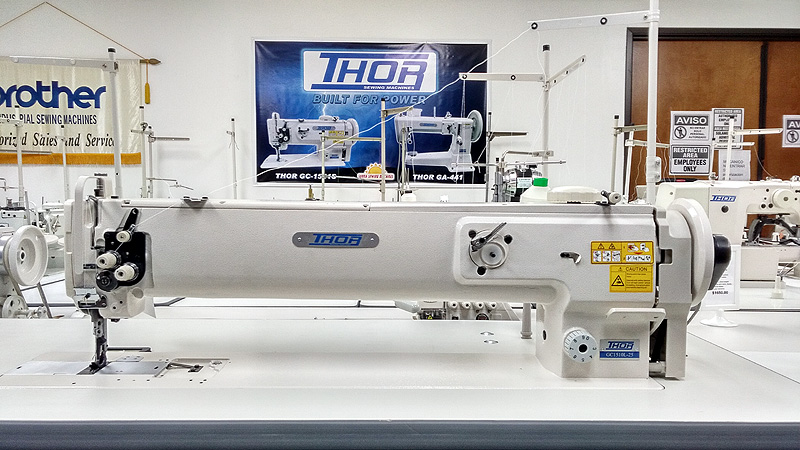

Name: THOR GC-1510L-25 Long Arm Single Needle Walking Foot Sewing Machine 25 Inch
SKU: 1106
Price: 4695.00 USD
Availability: InStock

Description

THOR GC-1510L-25 Long Arm Single Needle Walking Foot Sewing Machine for Leather, Vinyl, Canvas and Synthetics. 25″ Long Arm, Air Foot Lift, Needle Positioning Servo Motor

THOR GC-1510L-25 Long Arm Single Needle Walking Foot Machine

	MACHINE BRAND:
	MACHINE MODEL:	THOR GC 1510L-25
	MACHINE DESCRIPTION:	APPLICATIONS: For sewing medium to heavy weight materials such as upholstery fabrics, leather, vinyl, canvas, synthetics, laminated and coated products. Suitable for sewing products made of wider pieces of material such as truck tarps, covers, awnings, insulation panels, automotive and marine upholstery, furniture, etc. FEATURES: This 25 inch long arm single needle machine has a dual tension mechanism, with which the machine can support high tension sewing with thick thread. This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight materials. The high 16mm presser foot lift enables easy material handling for heavy sewing. The 1510s’ maximum stitch length of 2 ½ stitches per inch allows a broader range of uses, such as awnings and sacks. The stitch length is easily adjusted by the stitch dial. The 1561L-25 has a unique feature which allows the user to simply dial in the walk height of the Walking Foot. This prevents the Walking Foot from snagging on thicker material. Air foot lift is standard equipment allowing the operators to easily lift the foot for insertion and removal of materials.
	TECHNICAL SPECS:	APPLICATION: For Heavy Materials MAX SEWING SPEED: 2,000 SPM MAX STITCH LENGTH: 9mm Forward/Reverse (2 1/2 Stitches Per Inch) NEEDLE BAR STROKE: 36mm FOOT LIFT: 16mm by Knee, 9mm by Hand WALKING FOOT HEIGHT ADJUSTMENT DIAL: Standard THREAD TAKE UP: Slide Type HOOK: Large Hook / BIG Bobbin NEEDLE: 135×17 THREAD: TEX 40 to TEX 210 FEED ACTION: Complete Rectangular Feed NEEDLE THREAD TENSION: DUAL Tension Method STITCH LENGTH CHANGE METHOD: By Dial SAFETY MECHANISM: Standard LUBRICATION: Centralized Oil Wick Lubrication (Automatic Hook Lubrication)
	MACHINE SETUP:	This machine ships complete and fully assembled – ready to sew upon arrival. It includes: Machine Head Air Foot Lift Table Top Heavy Duty Stand Needle Positioning SERVO Motor LED Light Manuals Extra needles, bobbins, and tools.
	MOTOR & VOLTAGE:	This machine is equiped with a SERVO motor operating on standard 110 Volts power.
	WARRANTY:	1 Year Warranty
	SALE PRICE:	$4,695.00
	SHIPPING COST:	Commercial / Business Address = $295.00 Home / Residential Address = $395.00
	DELIVERY TIME:	In stock. 4 to 5 days delivery window.
	MACHINE BROCHURE:	N/A
	PARTS MANUAL:	Printed copy comes with the machine
