THOR GC-1508NH Single Needle Leather and Upholstery Walking Foot Sewing Machine with TOP LOAD Bobbin

QUICK OVERVIEW

NEW – TOP LOAD BOBBIN Single Needle Walking Foot Sewing Machine with Reverse, Adjustable Foot Height, Complete with Table, Stand and 110 Volt Servo Motor

$2,495.00

Shipping Options

Please choose a shipping method.

Product price: $2,495.00
Total options:
Order total:

Description

THOR GC-1508NH Single Needle Walking Foot Sewing Machine for Leather, Upholstery, Canvas and Webbing – with TOP LOAD BOBBIN – HEAVY WEIGHT VERSION

THOR GC 1508NH Walking Foot Sewing Machine for Leather and Upholstery

Machine Brand MACHINE BRAND: THOR Heavy Duty Sewing Machines
Sewing Machine Model MACHINE MODEL:

THOR GC-1508NH – HEAVY DUTY VERSION

Sewing Machine Description MACHINE DESCRIPTION:

APPLICATIONS:

  • For sewing medium to heavy weight materials such as leather, vinyl, upholstery fabrics, synthetics, laminated and coated products.
  • Suitable for sewing such products as cargo handling belts, containers, automobile upholstery, covers, sails, tents, camping trailer covers, awnings, hand bags, etc.  Widely used for FURNITURE UPHOLSTERY as well as Automotive, Marine and Aviation Upholstery.

FEATURES:

This single needle machine has a dual tension mechanism, with which the machine can support high tension sewing with thick thread.  This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight materials.

‚The high 16mm presser foot lift enables easy material handling for heavy sewing.

ƒThe 1508NH’s maximum stitch length of 9 millimeters allows a broader range of uses, such as awnings and tarps.

The stitch length is easily adjusted by the stitch dial.

The 1508NH has a unique feature which allows the user to simply dial in the walk height of the Walking Foot.  This prevents the Walking Foot from snagging on thicker material.

This machine has a self-oiling mechanism with oilt tank.

Pictures will show a SPEED REDUCER which is a $170.00 optional equipment.  This will allow you to sew at very low speeds – stitch by stitch and can easyly be installed per your request.

This machine is the “NH” version built for heavier duty sewing than the regular “NS” vesrion.



Techical Specifications TECHNICAL SPECS:
  • APPLICATION:  For Heavy to Extra Heavy Materials
  • MAX SEWING SPEED:  2,000 SPM
  • MAX STITCH LENGTH:  9mm Forward/Reverse
  • NEEDLE BAR STROKE:  38mm
  • FOOT LIFT:  16mm by Knee, 9mm by Hand
  • WALKING FOOT HEIGHT ADJUSTMENT DIAL:  Standard
  • THREAD TAKE UP:  Slide Type
  • HOOK:  Horizontal Axis DOUBLE Capacity Hook
  • NEEDLE:  135×17
  • THREAD:  TEX 70 to TEX 270
  • FEED ACTION:  Complete Rectangular Feed
  • NEEDLE THREAD TENSION:  DUAL Tension Method
  • STITCH LENGTH CHANGE METHOD:  By Dial
  • SAFETY MECHANISM:  Standard
  • LUBRICATION:  Self Oiler Automatic Lubrication



Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equipped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $2,495.00
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $240.00

Home / Residential Address = $295.00

Delivery Time DELIVERY TIME: In stock.  4 to 7 days delivery window.
icon pdf MACHINE BROCHURE: N/A
Sewing Machine Parts Manual PARTS MANUAL: Printed copy comes with the machine

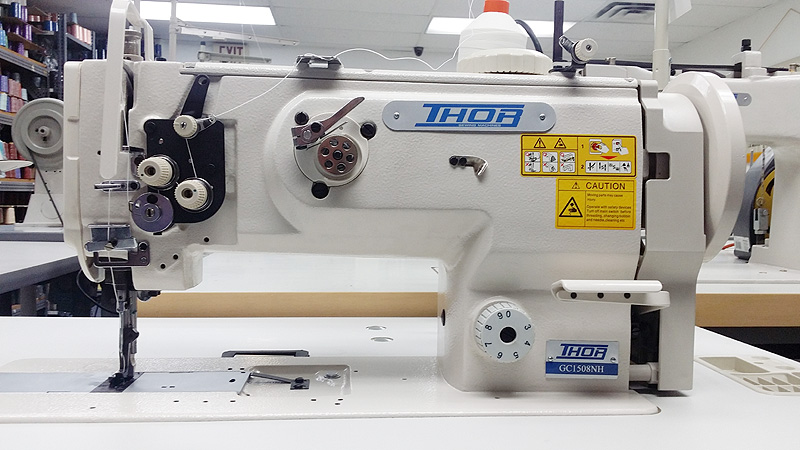

THOR GC 1508NH Leather and Upholstery Walking Foot Sewing Machine
