Description

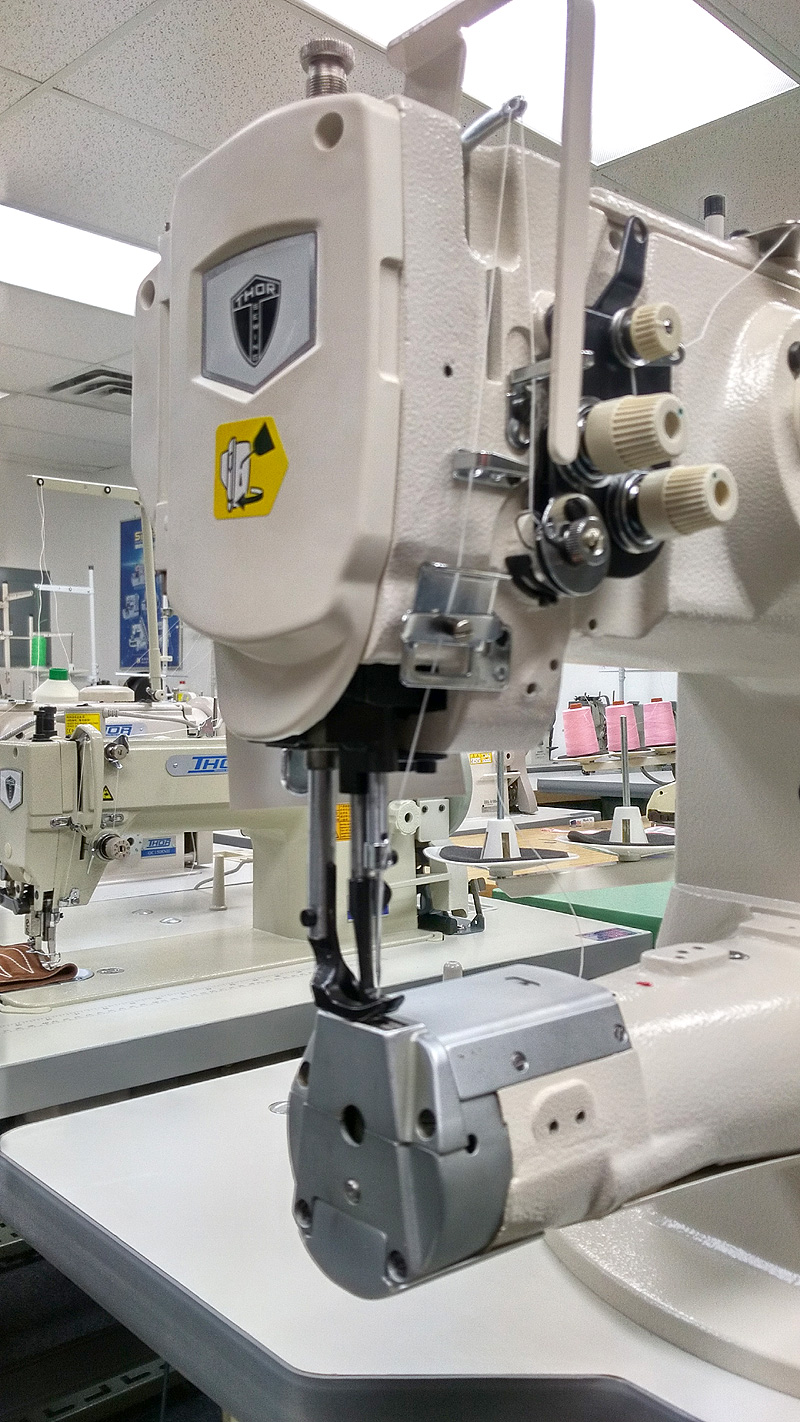

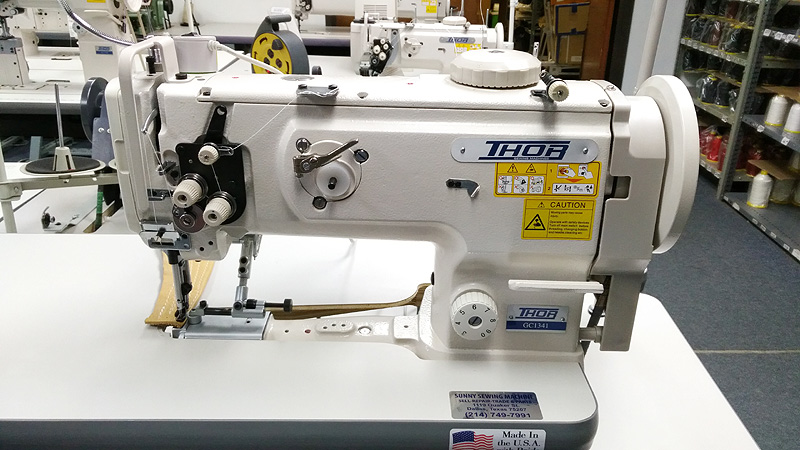

THOR GC-1341 Cylinder Arm Walking Foot Sewing Machine with Big Bobbin, Reverse, Adjustable Stitch Length – Fully Assembled & Ready To Sew
NOW SHIPS WITH THE NEWLY BUNDLED SRG PACKAGE:
- Speed Reducer
- Swing Down Guide
- Convertible Table (Removable)
- Caster Stand with Locking Wheels

 |
MACHINE BRAND: |
 |
 |
MACHINE MODEL: |
THOR GC-1341
|
 |
MACHINE DESCRIPTION: |
APPLICATIONS:

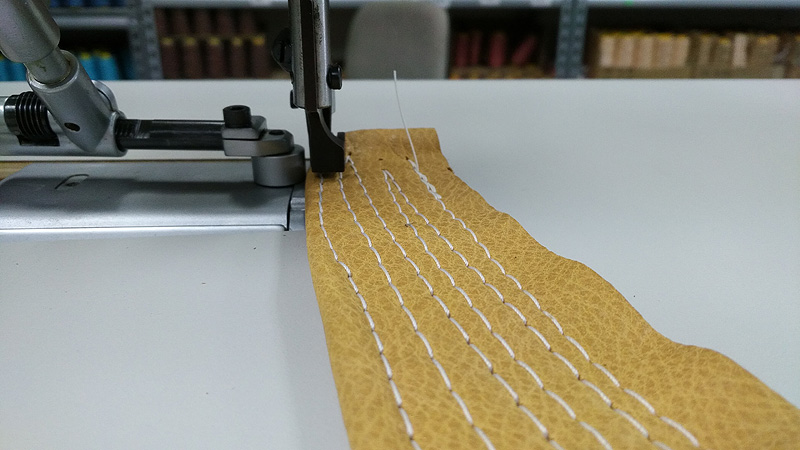

- For heavy weight materials such as leather, suedes, vinyl, synthetics, laminated and coated products.
- Suitable for sewing products such as hand bags, cases, automotive upholstery, covers, sails, tents, awnings, leather braces and many cylindrical products.
FEATURES:
- The high 16mm presser foot lift enables easy material handling for extra heavy sewing.
- Large hook and bobbins for extended thread life even with the thickest of threads.
- Will sew with thread sizes from TEX 69 to TEX 210.
- Reverse lever.
- Adjustable stitch length by stitch dial up to 2 1/2 stitches per inch (9mm Max Stitch Length).
- Stepping Foot Height Adjustment Dial
|
 |
TECHNICAL SPECS: |
- APPLICATION: For Medium to Heavy Weight Materials
- MAX SEWING SPEED: 2,000 SPM
- MAX STITCH LENGTH: 9 mm Forward/Reverse
- NEEDLE BAR STROKE: 36mm
- FOOT LIFT: 16mm by Knee, 9mm by Hand
- HOOK: LARGE CAPACITY 1.6 Fold Hook
- NEEDLE: 135×17
- THREAD: TEX 70 to TEX 210
|
 |
MACHINE SETUP: |
This machine ships complete and fully assembled – ready to sew upon arrival.
It includes:
- Machine Head
- Table Top
- Heavy Duty Stand
- SERVO Motor
- LED Light
- Manuals
- Extra needles, bobbins, and tools.
|
 |
MOTOR & VOLTAGE: |
This machine is equiped with a SERVO motor operating on standard 110 Volts power. |
 |
WARRANTY: |
1 Year Warranty |
 |
SALE PRICE: |
$2,695.00 |
 |
SHIPPING COST: |
Commercial / Business Address = $240.00
Home / Residential Address = $295.00 |
 |
DELIVERY TIME: |
In stock. 4 to 5 days delivery window. |
 |
MACHINE BROCHURE: |
N/A |
 |
PARTS & INSTRUCTION MANUAL: |
CLICK HERE TO DOWNLOAD |
