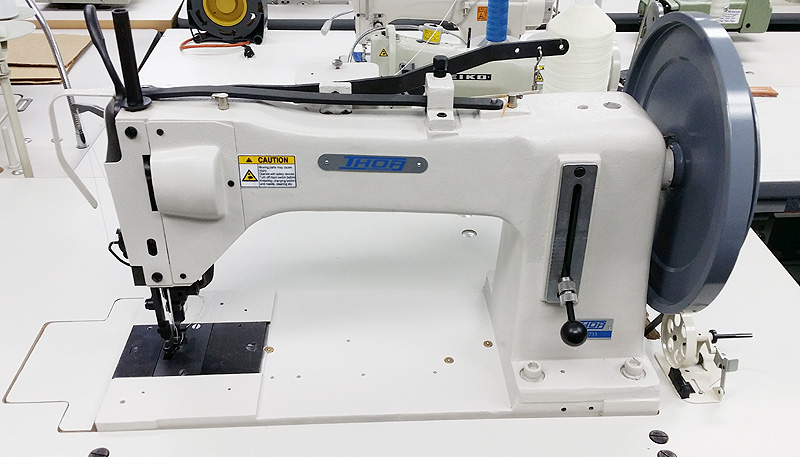

THOR GA 733 Extra Heavy Duty Walking Foot Sewing Machine for Extremely Heavy Materials and Thread

QUICK OVERVIEW

NEW – 7 Class THOR GA-733 Extra Heavy Duty Walking Foot Sewing Machine for Extreme Material Thickness and Thread Thickness. Complete with Air Foot Lifter, Speed Reducer and 110 Volt Servo Motor.

$6,095.00

Shipping Options

Please choose a shipping method.

Product price: $6,095.00
Total options:
Order total:

Description

THOR GA-733 Extra Heavy Duty Walking Foot Sewing Machine for Thick Leather, Cargo Straps, Webbing and other Extreme Material Weight Applications

7 Class Sewing Machine KINGMAX GA733

Machine Brand MACHINE BRAND: KINGMAX Industrial Sewing Machines
Sewing Machine Model MACHINE MODEL:

THOR GA-733

Sewing Machine Description MACHINE DESCRIPTION:

APPLICATIONS:

For sewing heavy to extra heavy weight materials such as webbing, leather, vinyl, synthetics, laminated and coated products.
Also suitable for sewing such products as cargo handling belts, containers, saddles, covers, sails, tents, camping trailer covers, awnings, hand bags, crane slings and truck tarp tie downs.

The GA733 is also capable of sewing with a wide range of thread sizes from 69 to 554.

FEATURES:

The high 33mm (1.5 inches) presser foot lift enables easy material handling for extra heavy materials.

‚
The GA733’s bobbin allows for easy access and fewer bobbin windings in order to increase production.
The reverse stitch and stitch length adjustment are easily accessible on the same lever.  This allows for quick and easy adjustments with visual and physical feedback.



Techical Specifications TECHNICAL SPECS:
  • APPLICATION:  For Heavy to EXTRA HEAVY Materials
  • MAX SEWING SPEED:  600 SPM
  • MAX STITCH LENGTH:  15mm (0.6″) Forward/Reverse
  • NEEDLE BAR STROKE:  56mm (2.2″)
  • FOOT LIFT:  33mm (1.5 Inches) by Knee (Push Pedal Air Liftter), 29mm by Hand
  • HOOK:  Oscilating Large Shuttle Hook
  • NEEDLE:  SM1000 # 27
  • THREAD:  TEX 69 to TEX 554





Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Air Foot Lifter
  • Speed Reducer
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • Speed Reducer (Optional)
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equiped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $6,250.00.00
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $295.00

Home / Residential Address = $395.00

Delivery Time DELIVERY TIME: IN STOCK NOW – 7 to 10 Days Delivery Time
icon pdf MACHINE BROCHURE: N/A
Sewing Machine Parts Manual PARTS MANUAL: Printed copy comes with the machine
