THOR GC-1541S-SRG Single Needle Leather and Upholstery Walking Foot Sewing Machine w Speed Reducer

QUICK OVERVIEW

NEW – Single Needle Walking Foot Sewing Machine with Reverse, Adjustable Foot Height, Speed Reducer and Swing Down Roller Guide

$1,895.00

Shipping Options

Please choose a shipping method.

Product price: $1,895.00
Total options:
Order total:

Description

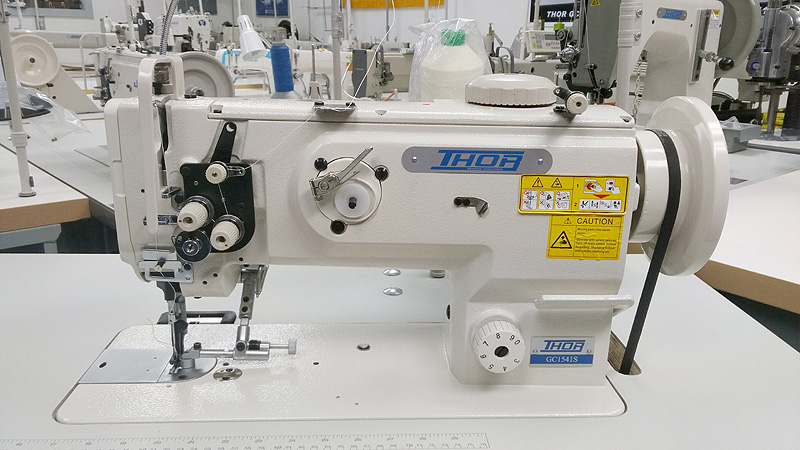

THOR GC-1541S-SRG Single Needle Walking Foot Sewing Machine with Speed Reducer and Swing Down Roller Guide

THOR GC 1541S Walking Foot Sewing Machine w Speed Reducer

Machine Brand MACHINE BRAND: THOR Heavy Duty Sewing Machines
Sewing Machine Model MACHINE MODEL:

THOR GC 1541S-SRG

Sewing Machine Description MACHINE DESCRIPTION:

APPLICATIONS:

  • For sewing medium to heavy weight materials such as fabrics, leather, vinyl, synthetics, laminated and coated products.
  • Suitable for sewing such products as cargo handling belts, containers, automobile upholstery, covers, sails, tents, camping trailer covers, awnings, hand bags, etc.

FEATURES:

This single needle machine has a dual tension mechanism, with which the machine can support high tension sewing with thick thread.  This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight materials.

‚The high 16mm presser foot lift enables easy material handling for heavy sewing.

ƒThe 1541s’ maximum stitch length of 2 ½ stitches per inch allows a broader range of uses, such as awnings and sacks.

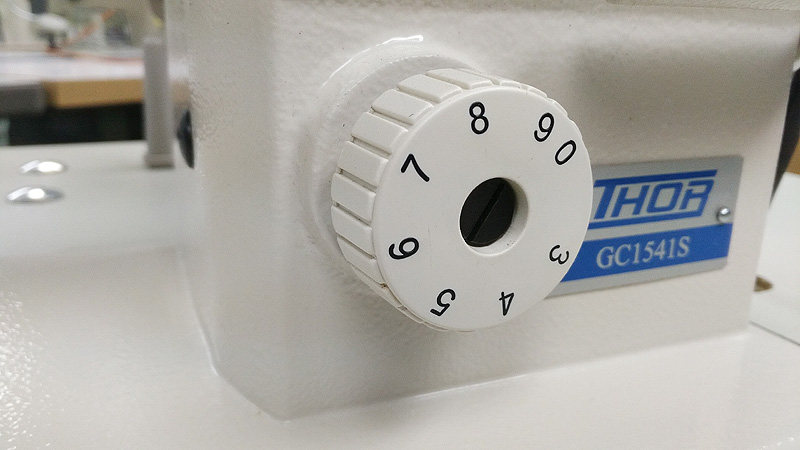

The stitch length is easily adjusted by the stitch dial.

The 1541 has a unique feature which allows the user to simply dial in the walk height of the Walking Foot.  This prevents the Walking Foot from snagging on thicker material.

Speed Reducer and Swing-Down Roller Guide Included in this Package



Techical Specifications TECHNICAL SPECS:
  • APPLICATION:  For Heavy Materials
  • MAX SEWING SPEED:  2,500 SPM
  • MAX STITCH LENGTH:  9mm Forward/Reverse
  • NEEDLE BAR STROKE:  36mm
  • FOOT LIFT:  16mm by Knee, 9mm by Hand
  • WALKING FOOT HEIGHT ADJUSTMENT DIAL:  Standard
  • THREAD TAKE UP:  Slide Type
  • HOOK:  Horizontal Axis DOUBLE Capacity Hook
  • NEEDLE:  135×17
  • THREAD:  TEX 40 to TEX 210
  • FEED ACTION:  Complete Rectangular Feed
  • NEEDLE THREAD TENSION:  DUAL Tension Method
  • STITCH LENGTH CHANGE METHOD:  By Dial
  • SAFETY MECHANISM:  Standard
  • LUBRICATION:  Centralized Oil Wick Lubrication (Automatic Hook Lubrication)





Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Speed Reducer
  • Swing-Down Roller Guide
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equiped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $1,895.00
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $240.00

Home / Residential Address = $295.00

Delivery Time DELIVERY TIME: In stock.  4 to 5 days delivery window.
icon pdf MACHINE BROCHURE: N/A
Sewing Machine Parts Manual PARTS MANUAL: Printed copy comes with the machine
