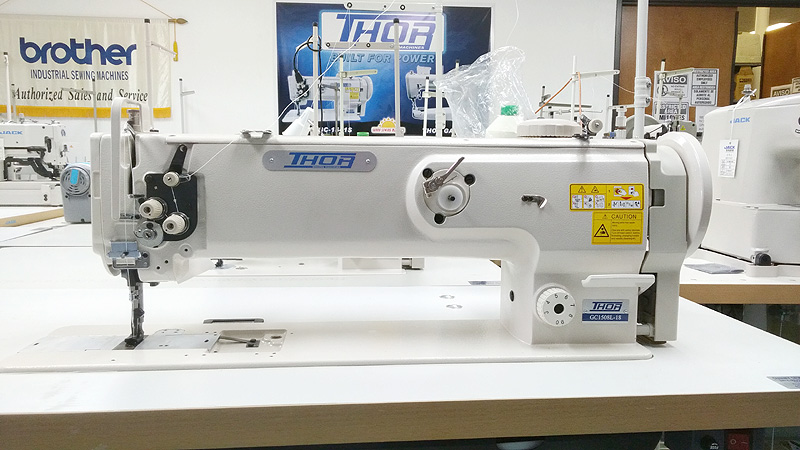

THOR GC-1508L-18 Single Needle 18 Inch Long Arm Leather and Upholstery Walking Foot Sewing Machine

QUICK OVERVIEW

NEW – TOP LOAD BOBBIN Single Needle 18″ Long Arm Walking Foot Sewing Machine with Reverse, Adjustable Foot Height, Complete with Table, Stand and 110 Volt Servo Motor

$3,250.00

Shipping Options

Please choose a shipping method.

Product price: $3,250.00
Total options:
Order total:

Description

THOR GC-1508L-18 Single Needle 18″ Long Arm Walking Foot Sewing Machine for Leather, Vinyl, Upholstery, and Canvas Fabrics.

THOR GC-1508L-18 Long Arm Walking Foot Sewing Machine

Machine Brand MACHINE BRAND: THOR Heavy Duty Sewing Machines
Sewing Machine Model MACHINE MODEL:

THOR GC-1508L-18

Sewing Machine Description MACHINE DESCRIPTION:

APPLICATIONS:

  • For sewing medium to heavy weight materials such as leather, vinyl, upholstery fabrics, synthetics, laminated and coated products.
  • Suitable for sewing such products as cargo handling belts, containers, automobile upholstery, covers, sails, tents, camping trailer covers, awnings, hand bags, etc.  Widely used for FURNITURE UPHOLSTERY as well as Automotive, Marine and Aviation Upholstery.

FEATURES:

This single needle machine has a dual tension mechanism, with which the machine can support high tension sewing with thick thread.  This means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight materials.

‚The high 16mm presser foot lift enables easy material handling for heavy sewing.

ƒThe 1508L-18 maximum stitch length of 9 millimeters allows a broader range of uses, such as awnings and tarps.

The stitch length is easily adjusted by the stitch dial.

The 1508L-18 has a unique feature which allows the user to simply dial in the walk height of the Walking Foot.  This prevents the Walking Foot from snagging on thicker material.

This machine has a self-oiling mechanism with oil tank.  It also features an AIR FOOT LIFT.

This machine is the 18 Inch Long Arm version suitable for sewing larger panels or wider pieces of material.



Techical Specifications TECHNICAL SPECS:
  • APPLICATION:  For Heavy to Extra Heavy Materials
  • MAX SEWING SPEED:  2,000 SPM
  • MAX STITCH LENGTH:  9mm Forward/Reverse
  • NEEDLE BAR STROKE:  38mm
  • FOOT LIFT:  16mm by Air, 9mm by Hand
  • WALKING FOOT HEIGHT ADJUSTMENT DIAL:  Standard
  • THREAD TAKE UP:  Slide Type
  • HOOK:  Horizontal Axis DOUBLE Capacity Hook
  • NEEDLE:  135×17
  • THREAD:  TEX 60 to TEX 210
  • FEED ACTION:  Complete Rectangular Feed
  • NEEDLE THREAD TENSION:  DUAL Tension Method
  • STITCH LENGTH CHANGE METHOD:  By Dial
  • SAFETY MECHANISM:  Standard
  • LUBRICATION:  Self Oiler Automatic Lubrication



Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • Air Foot Lift
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equipped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $3,250.00
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $240.00

Home / Residential Address = $295.00

Delivery Time DELIVERY TIME: In stock.  5 to 7 days delivery window.
icon pdf MACHINE BROCHURE: N/A
Sewing Machine Parts Manual PARTS MANUAL: Printed copy comes with the machine
