THOR GA-243 Extra Heavy Duty Walking Foot Sewing Machine for Very Thick Materials and Thread

QUICK OVERVIEW

NEW – Single Needle Extra Heavy Duty Flat Bed Walking Foot Sewing Machine for EXTRA THICK materials and threads. Complete with New Table Top, Stand and 110 Volt Servo Motor.

$3,250.00

Shipping Options

Please choose a shipping method.

Product price: $3,250.00
Total options:
Order total:

Description

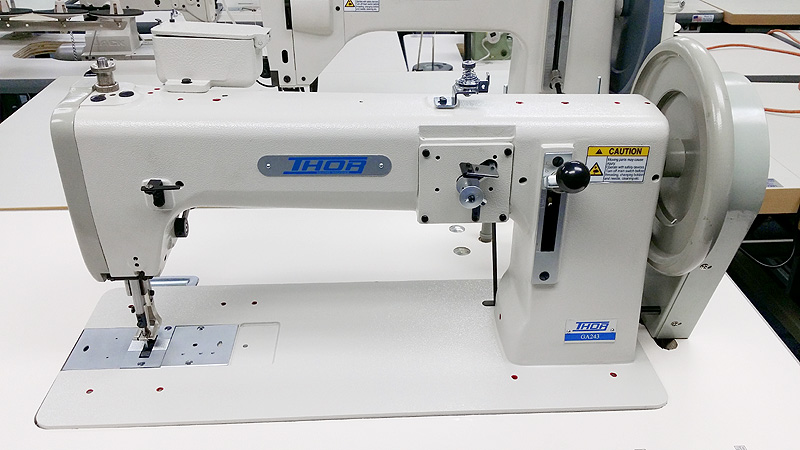

THOR GA-243 Extra Heavy Duty Walking Foot Sewing Machine for Thick Leather, Straps, Vinyls, Synthetic and Canvas.

KINGMAX GA-243 Extra Heavy Duty Walking Foot Sewing Machine

Machine Brand MACHINE BRAND: KINGMAX Industrial Sewing Machines
Sewing Machine Model MACHINE MODEL:

THOR GA-243

Sewing Machine Description MACHINE DESCRIPTION:

APPLICATIONS:

For sewing heavy to extra heavy weight materials such as suedes, leather, vinyl, synthetics, laminated and coated products.
Also suitable for sewing such products as cargo handling belts, containers, saddles, covers, sails, tents, camping trailer covers, awnings, hand bags, etc.

The GA243 is also capable of sewing with a wide range of thread sizes from 69 to 415

FEATURES:

The 243 comes with a large area under the arm of 420mm.  This allows the operator to
handle large materials with ease.
The 243s’ front mounted bobbin winder and extra large bobbin allows for easy access and
fewer bobbin windings in order to increase production.
‚‚
The high 20mm (7/8″) presser foot lift enables easy material handling for extra heavy materials.
The reverse stitch and stitch length adjustment are easily accessible on the same lever.
This allows for quick and easy adjustments with visual and physical feedback.
*** INCLUDES  HEAVY DUTY BALL BEARING SPEED REDUCER – INSTALLED ***



Techical Specifications TECHNICAL SPECS:
  • APPLICATION:  For Heavy to EXTRA HEAVY Materials
  • MAX SEWING SPEED:  800 SPM
  • MAX STITCH LENGTH:  15mm (0.6″) Forward/Reverse
  • NEEDLE BAR STROKE:  56mm (2.2″)
  • FOOT LIFT:  20mm (3/4″) by Knee, 12mm (1/2″) by Hand
  • HOOK:  Oscilating Large Shuttle Hook
  • NEEDLE:  DYx3
  • THREAD:  TEX 70 to TEX 415





Sewing Machine Setup MACHINE SETUP: This machine ships complete and fully assembled – ready to sew upon arrival.

It includes:

  • Machine Head
  • Table Top
  • Heavy Duty Stand
  • SERVO Motor
  • Speed Reducer (Optional)
  • LED Light
  • Manuals
  • Extra needles, bobbins, and tools.



Sewing Machine Voltage MOTOR & VOLTAGE: This machine is equiped with a SERVO motor operating on standard 110 Volts power.
Sewing Machine Warranty WARRANTY: 1 Year Warranty
Sewing Machine Sale Price SALE PRICE: $3,250.00
Sewing Machine Shipping Cost SHIPPING COST: Commercial / Business Address = $295.00

Home / Residential Address = $395.00

Delivery Time DELIVERY TIME: IN STOCK – 7 to 10 days delivery window
icon pdf MACHINE BROCHURE: N/A
Sewing Machine Parts Manual PARTS MANUAL: Printed copy comes with the machine
